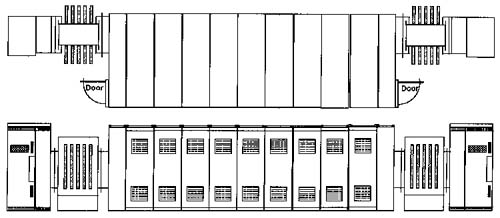

Secondary Unit Substations
Our vast knowledge of switchgear combined with our transformer capabilities allows us to provide secondary unit subs.
We can provide a completely tested system from incoming primary switch, to the transformer, down to the low voltage gear.
Our typical secondary sub is:
- Primary - 2400 volts to 34,500 volts fused load break switch
GE, Westinghouse-Cutler-Hammer-Siemens
- Transformer - oil or dry, 34,500 volt primary down to a secondary of either 4160 volts or 480 volts
- Secondary - 4160, 2400 or 480 V switchgear
Low Voltage
ANSI Metal Enclosed, Group Mounted, Individually Mounted
GE, Westinghouse-Cutler-Hammer, Siemens, ABB, Square D
| Category |
Item |
Low Range |
High Range |
| Primary Switch |
Type |
Fused Load Breaker |
Vacuum Gear |
| . |
. |
Single Switch |
Duplex-Key Locked Switch |
| Transformer |
Insulation |
Dry Type |
Oil Filled |
| . |
Rating |
500kVA |
10MVA |
| LV Switchgear |
Type |
Switchboard |
Switchgear |
| . |
Voltage |
208 Volts |
600 Volts |
| . |
Current |
400 Amps |
5000 Amps |
| . |
Interrupting Capacity |
22 kAIC |
200 kAIC |
| . |
Trip Ratings |
Long Time, Instantaneous (LI) |
Long Time, Short Time, Instantaneous and Ground Fault (LSIG) |
| . |
Auxiliaries |
1 no/1 nc |
4 no/4 nc |
| . |
Shunt Trips (list voltage) |
All ranges |
All ranges |
| . |
Undervoltages (list voltage) |
All ranges |
All ranges |
| . |
Fuses (limiters) |
800 Amps |
4000 Amps |
| . |
Bus Systems |
800 Amps |
6000 Amps |
| . |
Drawout Systems |
Fixed mounted |
Drawout mounted |
| . |
Housing |
Indoor |
Outdoor |
Let us provide you with a budgetary price on your electrical needs.
Simply indicate your voltage, current, testing standard, if any (ANSI, UL, etc), breaker versus fuse preference and we will respond with one or more options if applicable.
